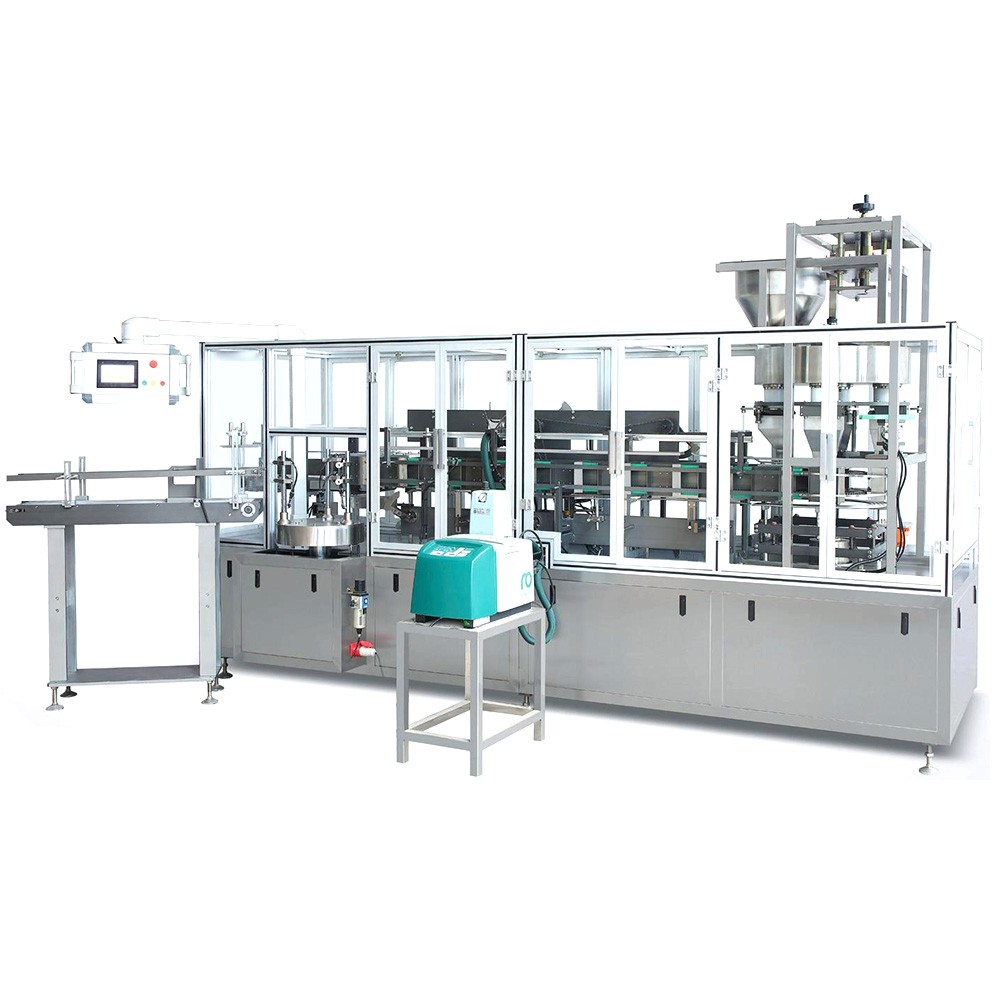

Vertically Cartoning Machine For Washing Powder,Powder Products Feeding Cartoning Machine
Model: CSL-160
Designed for the products which without inner packages or the products with mini packs,equipped with supporting platform,multi-head weigher.
- Speed:60-100 cartons/min
- Application Box Size:L(100-250)mm×W(80-160)mm×H(25-75)mm
- Cardboard Material:300-450g/㎡
- Power Supply:1.5KW 380V 50Hz
- Technical Parameter
- Electrical Parameter
- Application Samples
| Model | CSL-160 |
| Packing speed | 60-100cartons/min |
| Size of package | L(100-250)mm×W(80-160)mm×H(25-75)mm |
| Cardboard material | 300-450g/㎡ |
| Motor power | 1.5kw |
| Power supply | 380V 50HZ |
| Minimum Air pressure | 0.5-0.8 Mpa |
| Air consumption | 120-160L/min |
| Maximum noise | 80dB |
| Overall dimension | L4000mm×W2000mm×H2300mm |
| Weight | 3000Kg |
| PLC | CPIE-N30DT-D/Omron |
| PLC Extened Module | CPIE-C1F11/Omron |
| Touch Screen | NB7W-TW00B/Omron |
| Sensor | E3Z-D61/Sick |
| Frequency | 3G3JZ-A4015/Omron |
| Relay | MY2 NJ24V/Omron |
| Button | XB2/Schneider |
| Emergency Stop | ZB2 BC4D/Schneider |
| Electromagnetic Valve | 4V210-08/Airtac |
| Pressure Regulator Valve | BFR-2000/Airtac |
| Proximity Switch | TL-Q5MC1/Omron |
| AC contactor | LC1E3210M5N/Schneider |
| Air switch | 3P32A 1P6A/Schneider |
| Vaccum Sounder | ABM20-C/SMC |

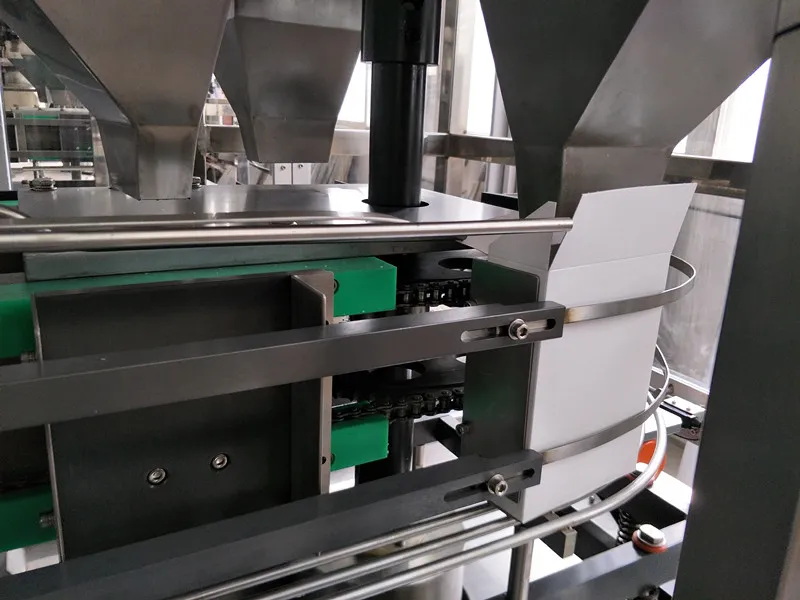

Product Feeding System
The machine is equipped with a system for feeding products into the packaging process. This could involve conveyor belts, augers, or other mechanisms to ensure a steady flow of products.

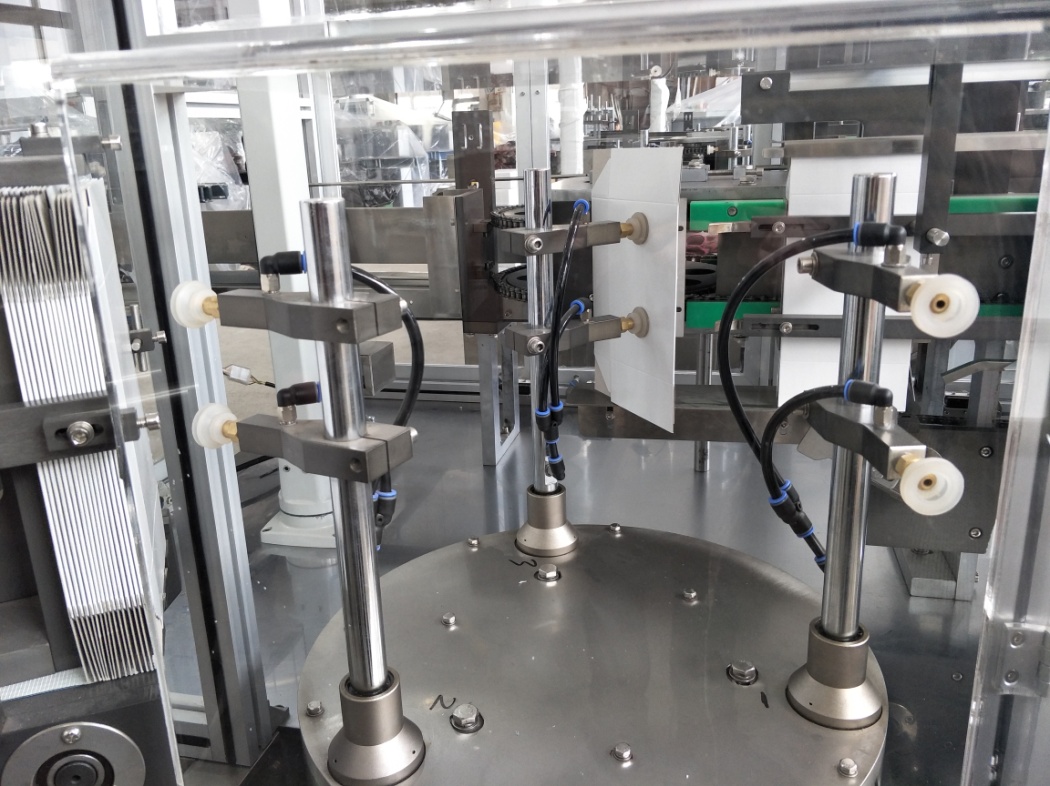

Box Forming
The Vertical Cartoning Machine is capable of forming cartons or boxes from flat blanks. These cartons are usually designed to accommodate the specific dimensions of the products being packaged.

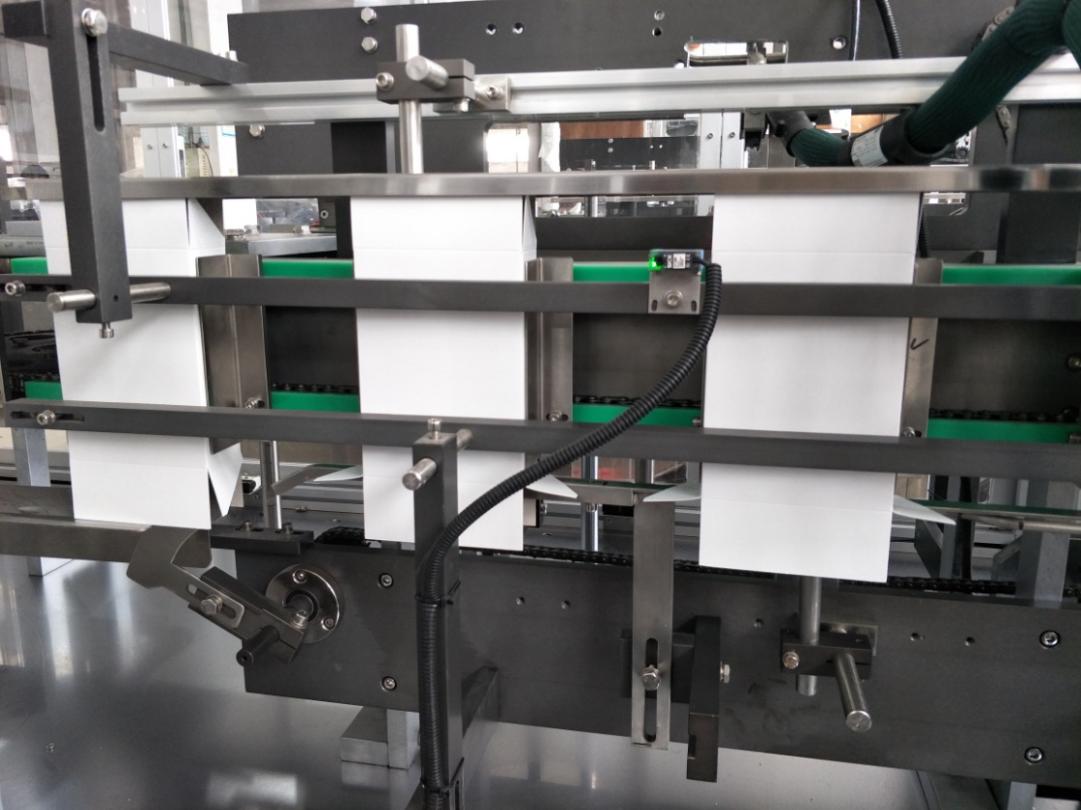

Closure and Sealing
Once the products are placed in the cartons, the machine seals and closes the cartons securely. This can involve various sealing methods, such as glue, tape, or other adhesive materials.

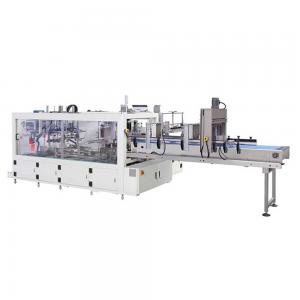

Related Products
Machine Features
China Automatic Vertical Cartoning Machine Factory
The Vertical Cartoning Machine is a specialized piece of equipment designed for the vertical packaging of various products. This type of machine is commonly used in manufacturing facilities where items need to be efficiently placed into cartons in an upright position.
These machines are often designed to be adjustable and flexible to accommodate different product sizes and carton dimensions. This versatility allows manufacturers to use the machine for various packaging requirements.
The Vertical Cartoning Machine typically includes a user-friendly interface that allows operators to control and monitor the machine's operation. This may include settings for different product sizes and packaging configurations.
Vertical Cartoning Machines are engineered for high-speed production, contributing to the efficiency of the packaging process. The output capacity can vary depending on the specific model and the nature of the products being packaged.
Automatic packing machines have built-in quality control mechanisms to detect missing product, ensuring that only correctly packaged products are released.
We provide end of line packaging solution. this machines can be seamlessly integrated into existing production lines, connecting with other packaging and filling equipment for a streamlined manufacturing process
