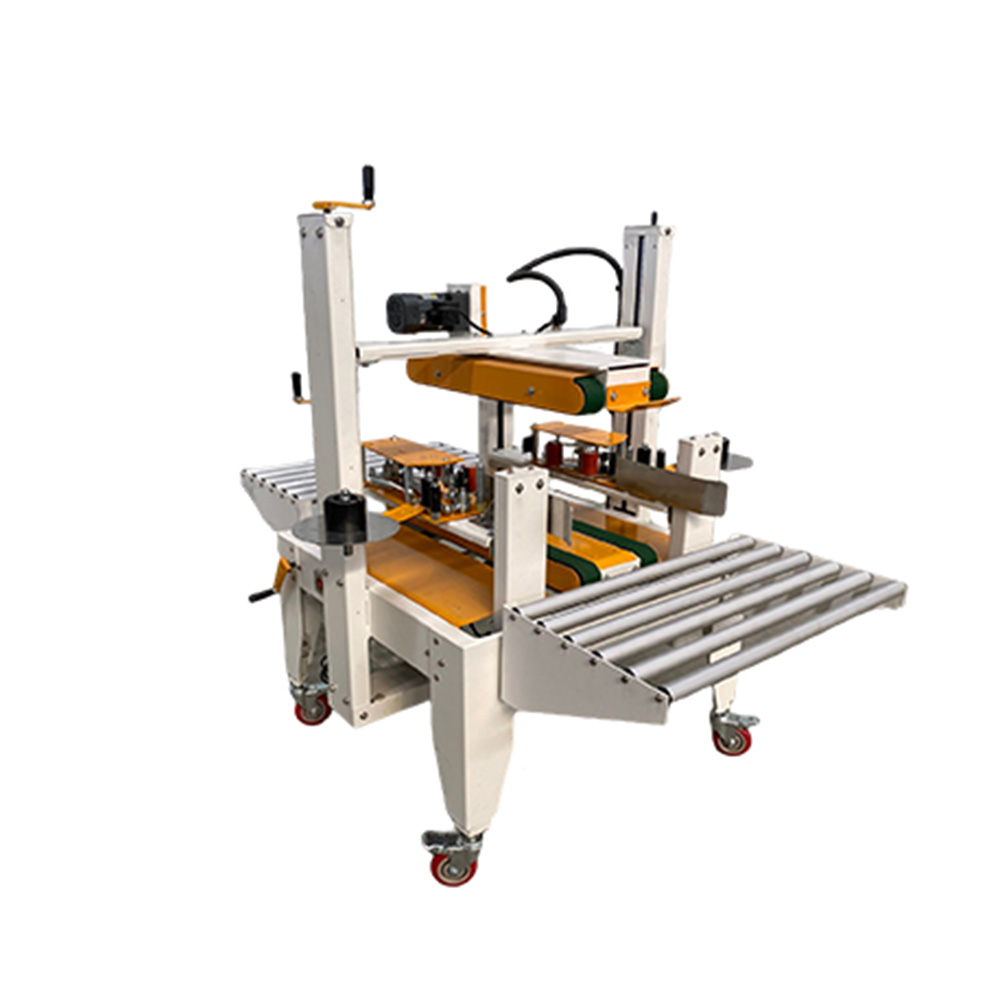

Semi-automatic Top and Bottom Driven Carton Sealing Machine
Model: FX-S50
Semi-automatic top and bottom driven carton sealing machine is top and bottom driven, suitable for heavier cartons.
- Conveyor Speed:0-20m/min
- Application Box Size: L200~ *W250-500*H100-450mm
- Applicable Tape Size:48mm, 60mm, 72mm
- Air Consumption:5kg.f/cm-100nl/min
- Technical Parameter
- Electrical Parameter
- Application Samples
| Model | FX-S50 |
| Conveyor Speed | 0-20m/min |
| Applicable Carton Size | L200~ *W250-500*H100-450mm |
| Applicable Tape Size | 48mm 60mm 75mm |
| Machine Out-feeding Height | 600-750mm (Adjustable) |
| Air Consumption | 5kg.f/cm-100nl/min |
| Power | 240W |
| Voltage | 220V 50HZ |
| Machine Size | L960*W1055*H1410mm |
| Motor | GPG/Taiwan |
| Cylinder | AirTac/Taiwan |
| Limit Switch | Ormoron/Japan |
| Solenoid valve | AirTac/Taiwan |
| AC Contactor | Schneider/France |
| Intermediate Relay | Schneider/France |
| Button Switch | Schneider/France |

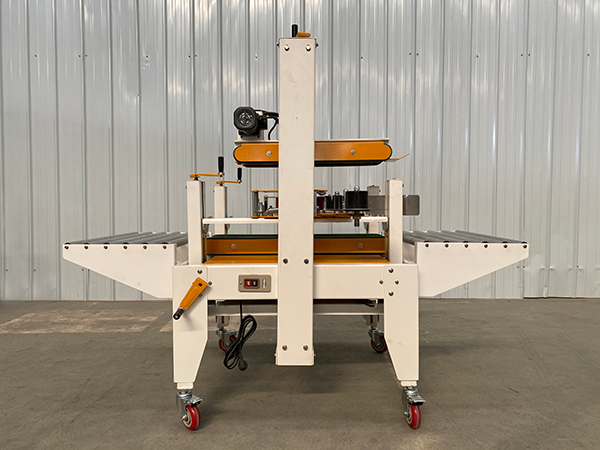

Top and Bottom Drive
The name "Top and Bottom Driven" indicates that the machine's sealing mechanisms are positioned at both the top and bottom sections of the carton. This design enhances the stability and reliability of the sealing process.

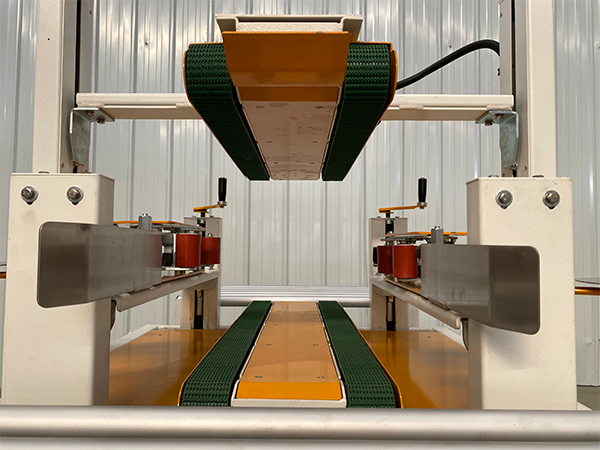

Dual-Sided Sealing
The primary function of this machine is to seal both the top and bottom flaps of cartons. This dual-sided sealing ensures that the cartons are securely closed, providing additional protection to the contents.

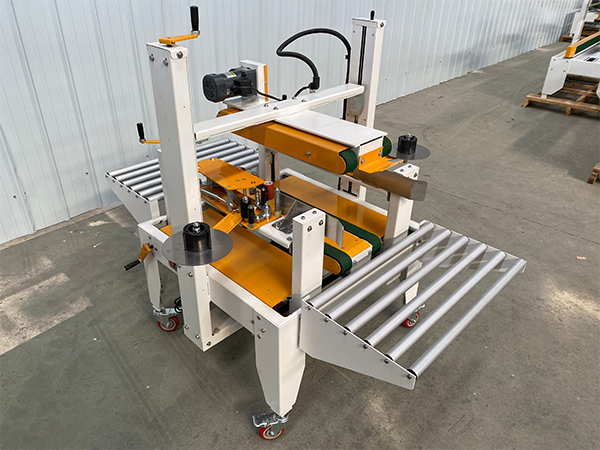

Adjustable Settings
Our top and bottom driven carton sealers are equipped with adjustable settings, allowing operators to adapt the machine to different carton sizes. The width and height of the sealing area can be easily customized to match the specific dimensions of each carton.
Related Products
Machine Features
China Semi-automatic Top and Bottom Driven Carton Sealing Machine Manufacturer
Top and Bottom Driven Carton Sealer is a versatile and efficient solution for sealing cartons in various packaging operations. Its ability to seal both the top and bottom of cartons enhances the security and integrity of the packaging, making it an essential component in modern packaging facilities.
In high-volume packaging operations, this type of carton sealer significantly increases productivity and reduces labor costs, resulting in cost-effective packaging processes.
Semi automatic case sealing machines are user-friendly, typically featuring control panels that allow for easy setup and adjustment to meet specific packaging requirements.
Safety measures are often integrated to protect operators and prevent accidents during machine operation.
The machines are engineered to ensure that the boxes are sealed consistently and securely, minimizing the risk of product damage during transit.
They can be integrated into larger packaging lines, working in tandem with other machines like case erector, carton packer, and conveyors to create a complete and seamless packaging process.
