Pharmaceutical industry medical box double side labeling machine

Double side box corner labeling machine

  • Tamper-evident labeling machine
  • Boxes double side labeling machine
  • Carton double side labeling machine
  • Double-sided Corner Labeling Machine
  • Double-sided Corner Labeling Machine

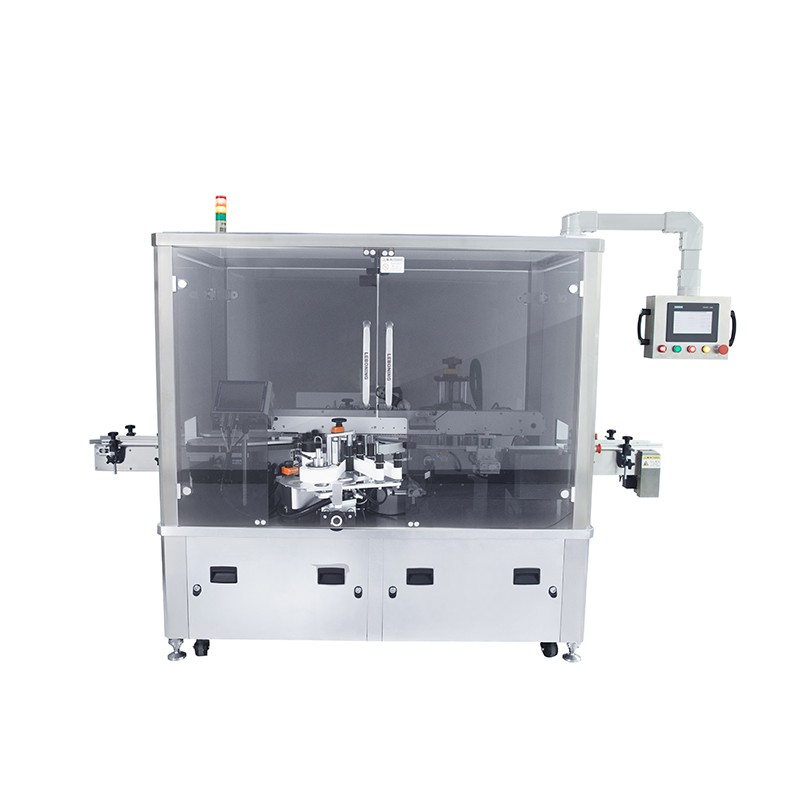

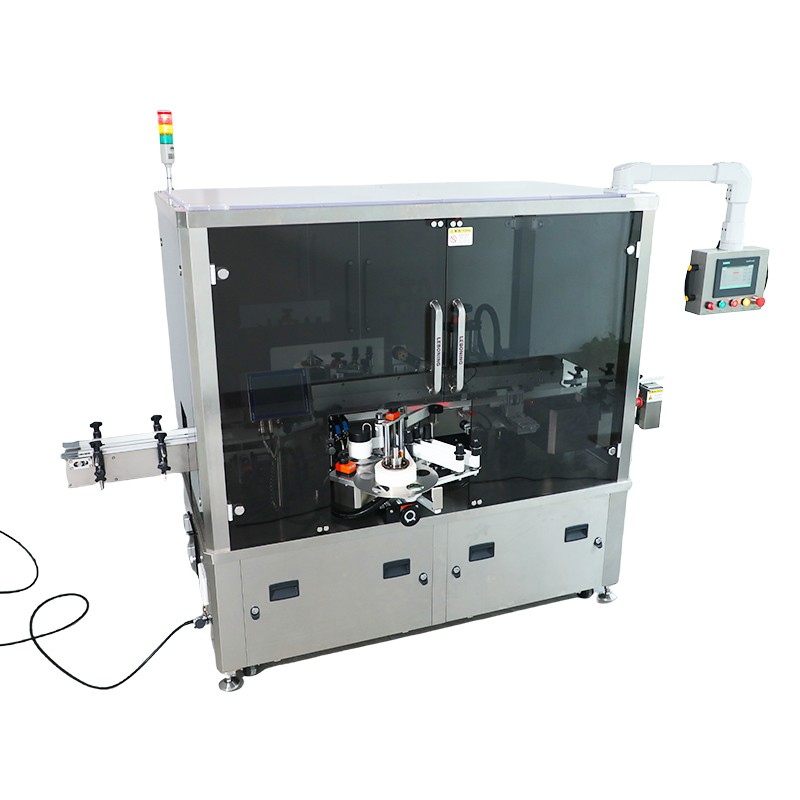

Double-sided Corner Labeling Machine

Model: P-260D

It is designed for double-sided corner labeling of various sizes of cartons/boxes. The layout can be flexibly adjusted to meet different corner labeling requirements.

  • Speed:0-250boxes/min
  • Application Box Size:L:50-200mm,W:30-120mm,H:15-100mm
  • Applicable Label Size:L:15-100mm,W:15-60mm
  • Power Supply:3.5KW 220V 50/60Hz
Machine Parameters
Applicable box size L:50-200mm,W:30-120mm,H:15-100mm
Labeling speed 0-250 boxes /min
Labeling accuracy ±1mm ( except packaging material error )
Product broken rate 0.01 %
Labeling pass rate > 99.9%
Power supply 3.5KW, AC220V, 50/60HZ
Air consumption 0.5Mpa,200L /min
Machine dimension 2650*1500*2070mm
Total weight (approximately) Around 300Kg
Material of protective cover Acrylic or tempered glass
Self-adhesive label parameters
Applicable label material Transparent labels, coated paper & PE, etc.
Applicable inner diameter of the label roll φ76mm
Maximum label roll outer diameter Φ300mm
Applicable label size L:15-100mm,W:15-60mm
Label spacing 2-4 mm
Top/bottom margins on liner 2 mm
Grammage >62 g/m2
Thickness >55 μm
Tensile strength Machine Direction : 16kg/25mm ,Cross direction: 7kg/25mm
Breaking strength Machine Direction : 25g/sheet ,Cross direction: 31g/sheet
Transparency 52%
Electronic control system
PLC S7-200 smart SIEMENS (Germany)
Power Supplier LRS-100-24 ( DC24V/100W) MEAN WELL (Taiwan)
Air switch ic65N-c16A Schneider (France)
Air switch ic65N-c10A Schneider (France)
Relay MY2N- GS OMRON (Japan)
Chassis unit
Main material Stainless steel SUS304
Chassis dimension 1200(L)×850(W)×1840(H) mm
Case structure material Stainless steel square tube SUS304
Outer sealing material Stainless steel SUS304
Illuminated button ( red ) XB2BA42C Schneider (France)
Emergency stop switch XB2BS542C Schneider (France)
Threshold switch SN05-N ROKO (Taiwan)
Conveyor mechanism
Main material Stainless steel SUS304, aluminum A6061, plastic steel chain plate, POM
Conveying motor and reducer 5IK60GN-YFT 5GN15K TWT (Taiwan)
Conveyor Motor Inverter FC - 051 0.37 KW Danfoss (Denmark)

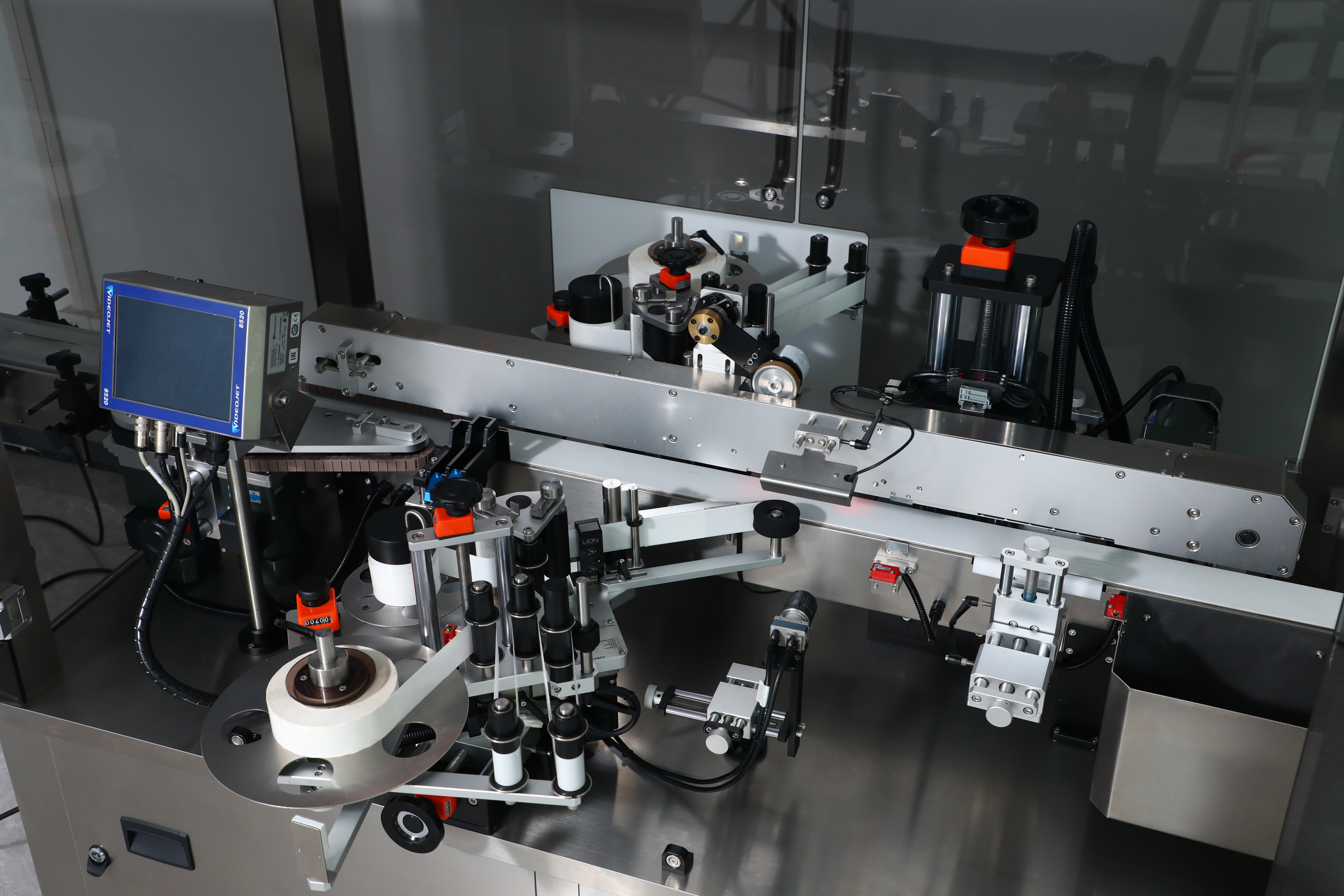

Labeling host head
Main material Stainless steel SUS304, Aluminum A6061, POM
Label pulling servo motor SGM7J-08AFC6S YASKAWA (Japan)
Label pulling servo drive SGD7S-5R5A00B202 YASKAWA (Japan)
Label stock sensor PRK3C.T3/2N Leuze (Germany)
Label detection sensor LRD-2100 LION (USA)
HMI
Main material Stainless steel SUS304, aluminum A6061
Touch screen PFXGP4402W Proface (Japan)
Illuminated button ( green ) XB2BA31C Schneider (France)
Illuminated button ( yellow ) XB2BA51C Schneider (France)
Illuminated button ( red ) XB2BA42C Schneider (France)
Emergency Button XB2BS542C Schneider (France)
Rotary Switches ZB5AK1253C Schneider (France)

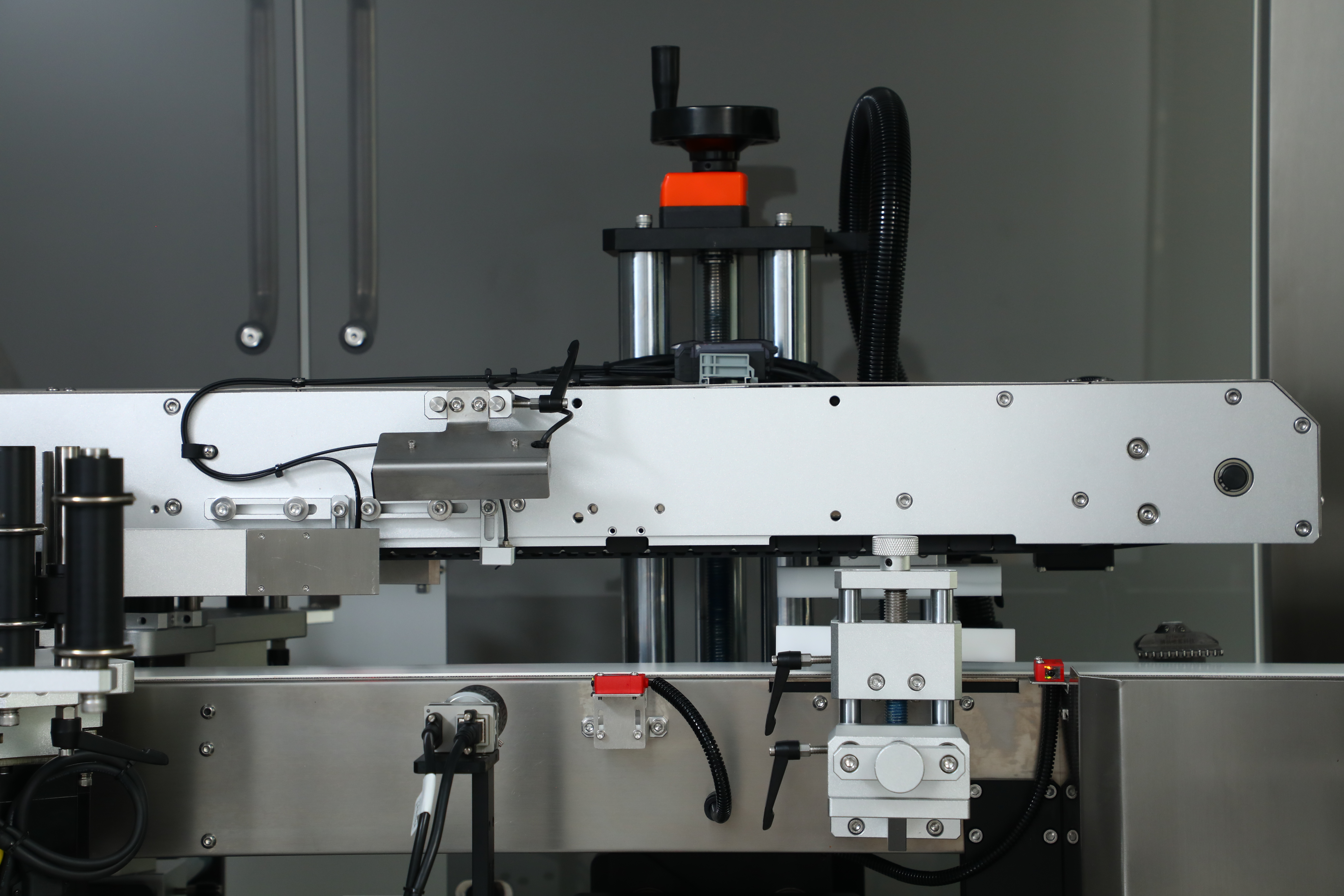

Separation correction mechanism

Equip the separation correction mechanism to separate the product spacing and adjust the right position after conveying the top pressure mechanism to ensure the labeling accuracy.


Integrated acrylic protective cover

The equipment is equipped with an integrated protective cover made of acrylic. During operation, if any protective door is opened, an automatic alarm will be triggered, and the machine will stop to ensure the safety of the operators.


Whole labeling process

The box is transported to the separation and calibration mechanism through the conveyor belt, and the separated spacing and corrected products enter the upper pressure mechanism. During the synchronous transportation of the upper pressure mechanism and the conveyor belt, the product is labeled with the head of the host machine, the self-adhesive label is affixed to the bottle body, and the label is pressed firmly through the brush to complete the labeling. complete the labeling.


Related Products

Fully Automatic Case Taper Machine

Fully Automatic Case Taper Machine

Automatic Cream Tube Cartoning Machine

Automatic Cream Tube Cartoning Machine

High Speed Automatic Carton Sealer

High Speed Automatic Carton Sealer

Semi-automatic Top and Bottom Driven Carton Sealing Machine

Semi-automatic Top and Bottom Driven Carton Sealing Machine

Machine Features
China Double-sided Corner Labeling Machine


The machine, capable of simultaneous double-sided circumferential surface labeling, accommodates bottles of various shapes, including round, flat, square, and special-shaped bottles, as well as cartons and boxes. This versatile double side bottle sticker labeling machine is suitable for diverse industries such as cosmetics, food, medicine, daily chemicals, and more.

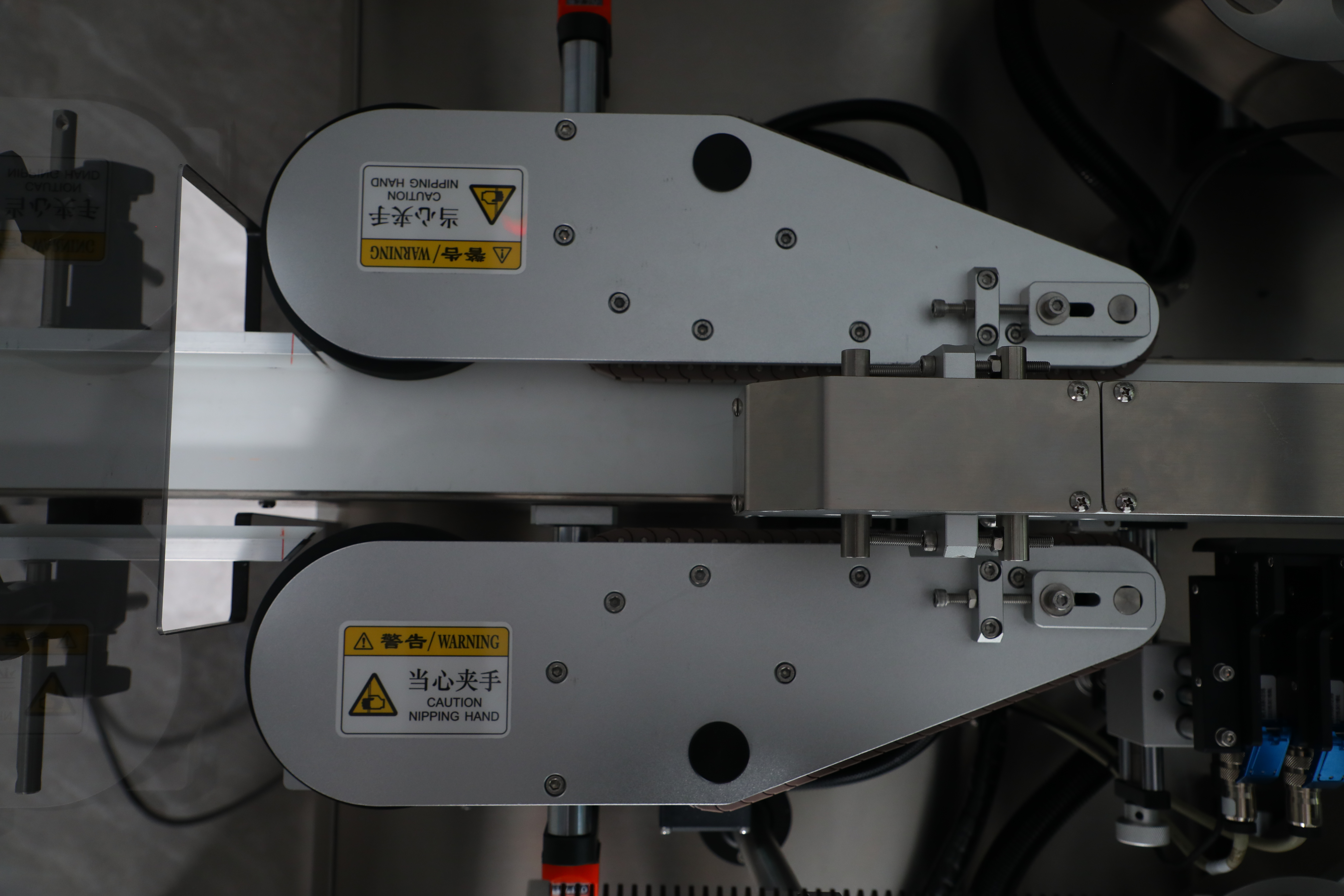

Box-separating and correcting mechanism

The cartons are transported to the box-separating and correcting mechanism through the conveyor belt, and enter the upper pressing mechanism after separating the spacing. The head of the labeling machine outputs the label, sticks the self-adhesive label on the carton, and presses the label firmly through the labeling sponge wheel.

Easily adjustment in different sizes

When changing the specifications, you only need to simply adjust the guardrail, the replacement is quick and convenient, and the specification replacement can be completed within 30 minutes.

Connected to production line

The operation direction of the equipment is the left type, that is, the material is fed from the left and the material is discharged from the right. The equipment can be used as a stand-alone machine, or it can be connected and linked with other equipment in the production line.

Branded electrical configuration

The equipment is controlled by Siemens PLC and touch screen. The main electrical components are all internationally renowned brands to ensure the stability of equipment operation and the convenience of maintenance. Wires and electrical components can withstand the corrosion of ozone, alcohol, glutaraldehyde, peracetic acid, hydrogen peroxide, formaldehyde and other disinfectants that meet regulatory requirements for a long time.

Protection function

The equipment has the protection functions of shortage of labels and material shortage, alarm and linkage shutdown protection.
