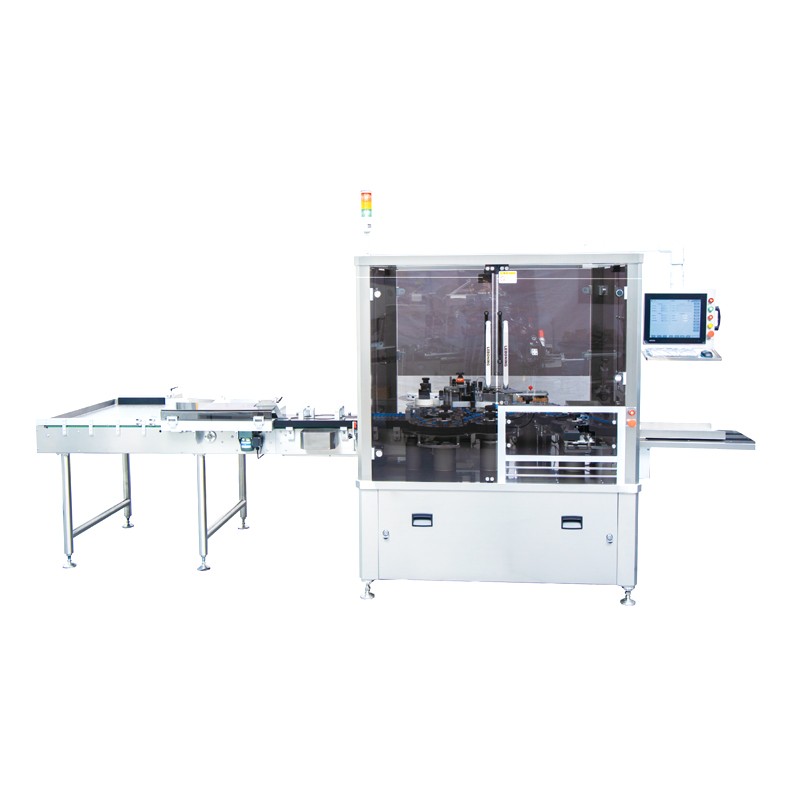

High Speed Penicillin Bottle Adhesive Labeling Machine
Model: Y-700
The machine is designed for vertical labeling on round bottles, including vials and syrup bottles of various specifications.
- Speed:up to 700pcs/min
- Application Bottle Dia:16-42.5mm
- Labeling accuracy:±1mm
- Breakage rate:<0.001%
- Technical Parameter
- Electrical Parameter
- Application Samples
Machine Parameters | |
Applicable bottle diameter | 16-42.5mm |
Applicable label material | Paper labels and transparent labels |
Labeling speed | 0-700 bottles /min |
Labeling accuracy | ±1mm ( except packaging material error ) |
Product broken rate | < 0.01 % |
Label breakage rate | < 0.1 % |
Labeling pass rate | > 99.9% |
Power supply | 5KW, AC220V, 50HZ |
Air consumption | 0.6Mpa,500L /min |
Machine dimension | 3508*1873*2109mm |
Total weight (approximately) | Around 500Kg |
Noise | <75dB ( one meter away from the equipment ) |
Applicable inner diameter of the label roll | φ76mm |
Maximum Label Roll Outer Diameter | Φ400mm |
Self-adhesive label parameters | |
Label spacing | 2-4 mm |
Top/bottom margins on liner | 2 mm |
Grammage | >62 g/m2 |
Thickness | >55 μm |
Tensile strength | Machine Direction : 16kg/25mm ,Cross direction: 7kg/25mm |
Breaking strength | Machine Direction : 25g/sheet ,Cross direction: 31g/sheet |
Transparency | 0.52 |
Electronic control system | ||
PLC | S7-200 smart | SIEMENS (Germany) |
Power Supplier | LRS-100-24 ( DC24V/100W) | MEAN WELL (Taiwan) |
Air switch | ic65N-c16A | Schneider (France) |
Air switch | ic65N-c10A | Schneider (France) |
Relay | MY2N- GS | OMRON (Japan) |
Chassis unit | ||
Main material | Stainless steel SUS304 | |
Chassis dimension | 2005(L)×605(W)×672(H) mm | |
Case structure material | Stainless steel square tube SUS304 | |
Outer sealing material | Stainless steel SUS304 | |
Conveyor mechanism | ||
Main material | Stainless steel SUS304, aluminum A6061, plastic steel chain plate, POM | |
Conveying motor and reducer |
T1A71B4
B14 0.37KW MU40 30/1 |
SITI (Italy) |
Conveyor Motor Inverter | FC - 051 0.37 KW | Danfoss (Denmark) |
Labeling host head | ||
Main material | Stainless steel SUS304, Aluminum A6061, POM | |
Label Feeding Motor | 4RK25GN-CT | TWT (Taiwan) |
Label Feeding speed reducer | 4GN9K | TWT (Taiwan) |
The bottom paper collecting motor | 4RK25GN-CT | TWT (Taiwan) |
The bottom paper reducer | 4GN9K | TWT (Taiwan) |
Label pulling servo motor | SGM7A-08AFA61 | YASKAWA (Japan) |
Label pulling servo drive | SGD7S-5R5A00B202 | YASKAWA (Japan) |
Label stock sensor | GTE6-N1211 | SICK (Germany) |
Label feeding sensor | GL6-N1111 | SICK (Germany) |
Label detection sensor | WF2-40B410 | SICK (Germany) |
Wheel attached agency | ||
Agency main material | Stainless steel SUS304, A6061 aluminum | |
Wheel attached to the motor | 5IK60GN-YFT | TWT (Taiwan) |
Wheel attached to the reducer | 5GN9K | TWT (Taiwan) |
Work content photoelectric detection | FS-N18N | KEYENCE (Japan) |
HMI | ||
Main material | Stainless steel SUS304, aluminum A6061 | |
Touch screen | PFXGP4402W | Proface (Japan) |
Illuminated button ( green ) | NLB22-F10GA | NHD(Taiwan) |
Illuminated button ( yellow ) | NLB22-F10GA | NHD(Taiwan) |
Illuminated button ( red ) | NLB22-F10GA | NHD(Taiwan) |
Emergency Button | XB2BS542C+ ZB2-BS54C | Schneider (France) |
Rotary Switches | NLS22-S210RA | Schneider (France) |
Rotary Star Wheel Positioning Mechanism

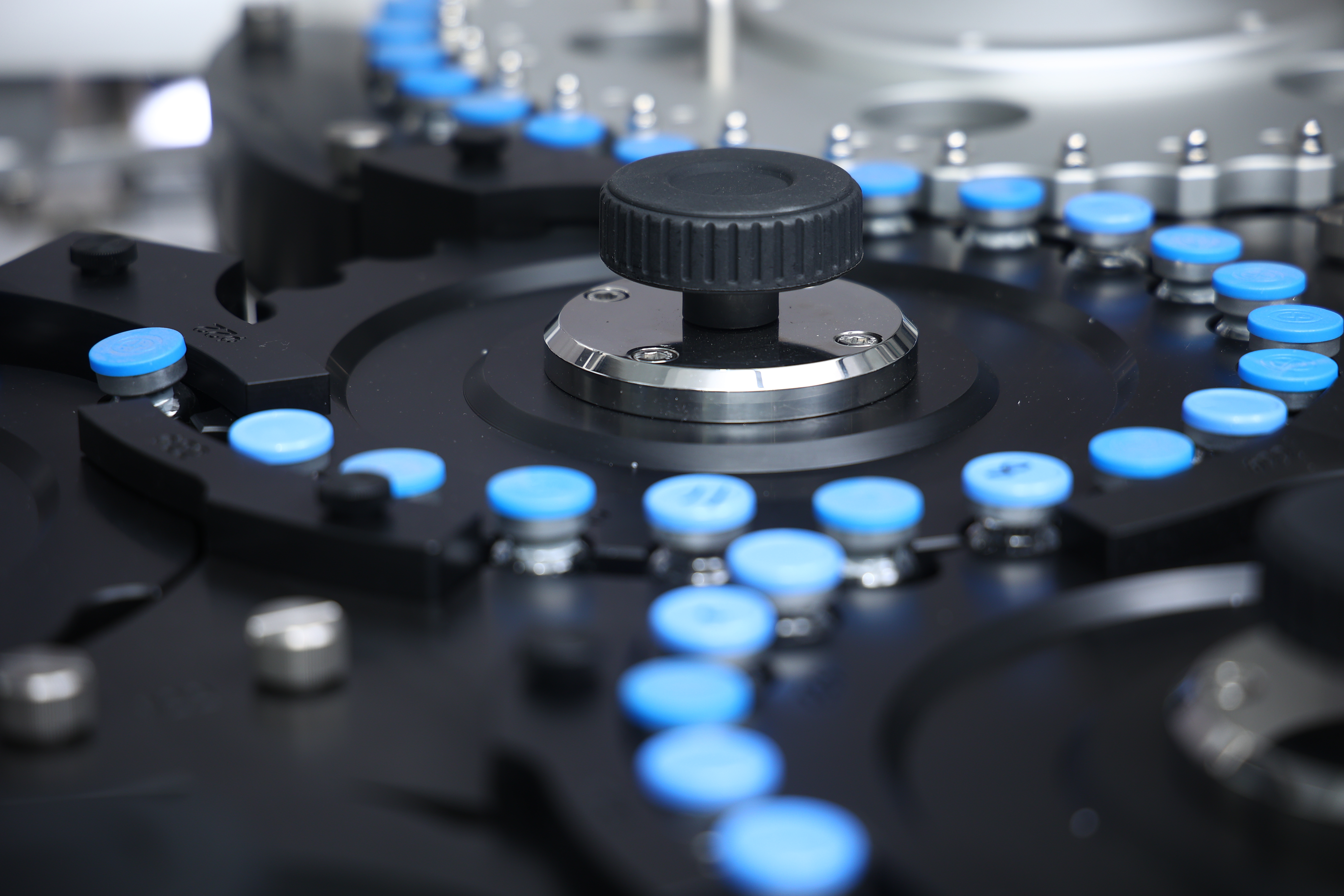

The rotary star wheel positioning mechanism ensures precise positioning, resulting in high labeling accuracy with a tolerance of ±0.5mm. This mechanism guarantees consistent and reliable label placement, meeting stringent quality standards for labeling applications.
Host Labeling Machine Head

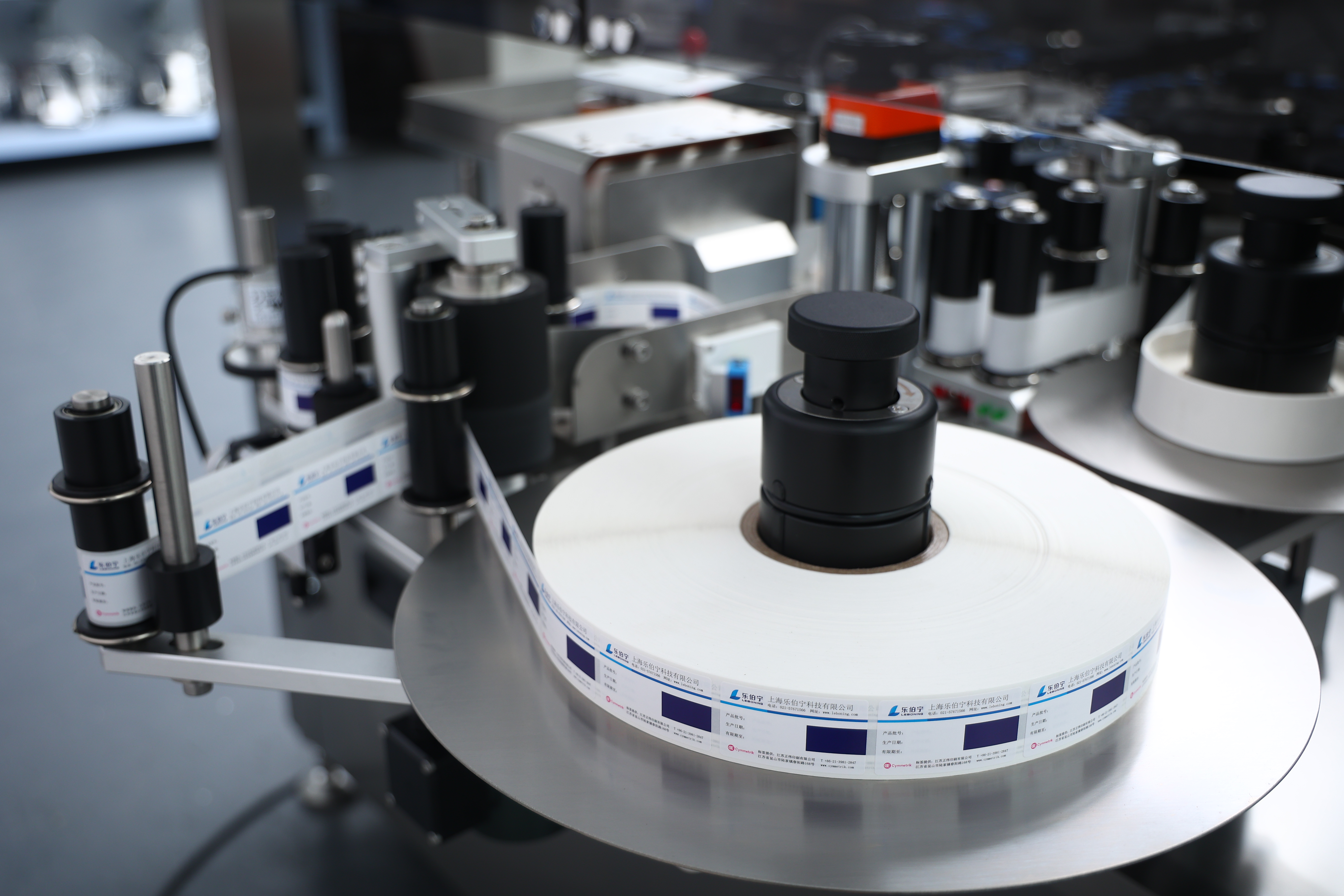

The labeling machine head adopts a three-section label application system, comprising label supply, label pulling, and bottom paper recycling systems, each with individual motor control, ensuring rapid and stable label supply and maintaining labeling speed and accuracy.
Character Camera Detection Mechanism

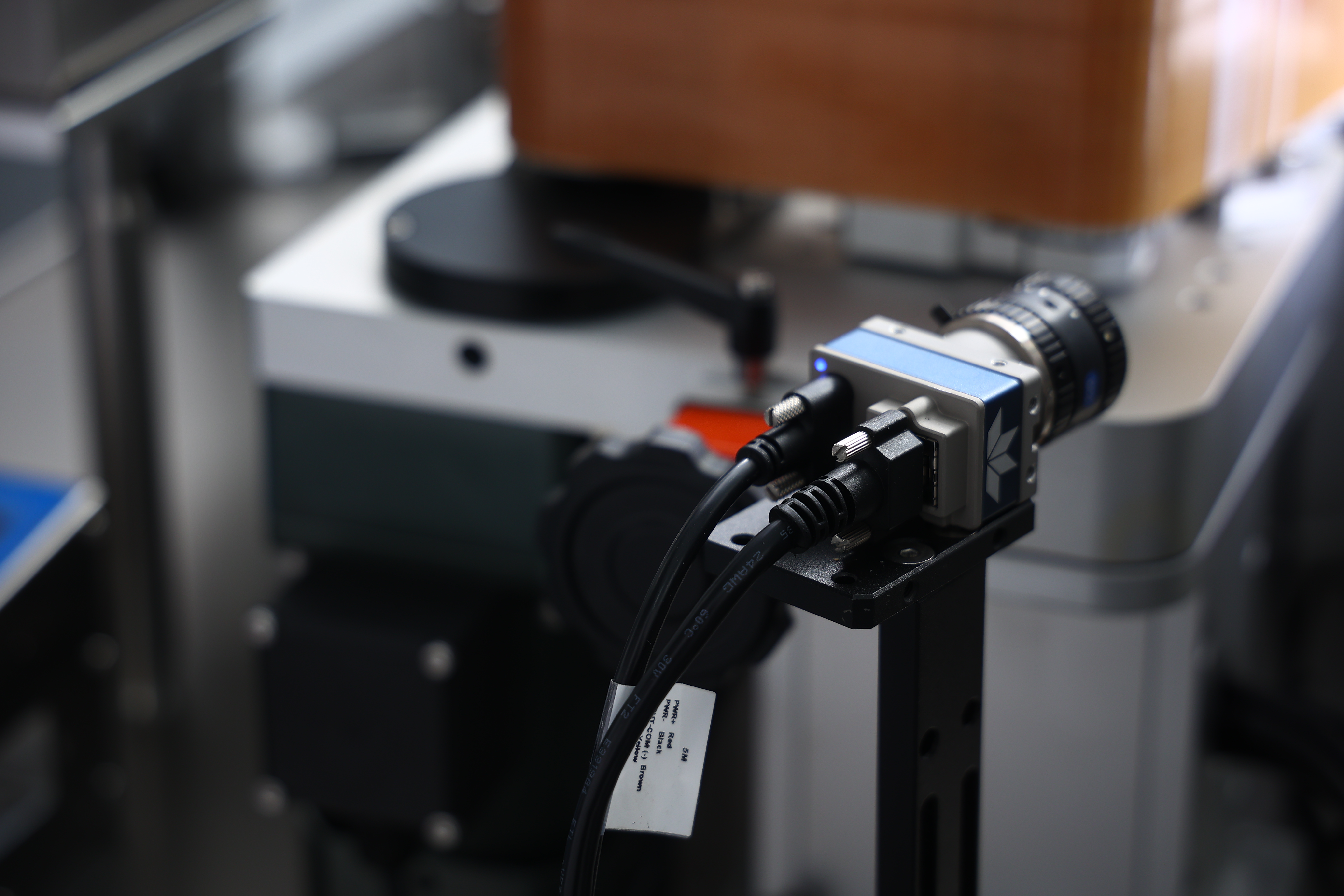

The character camera detection mechanism of the High Speed Penicillin Bottle Adhesive Labeling Machine identifies labels with incomplete or unclear printed content by capturing photos and analyzing them using advanced optical recognition technology.
Related Products
Machine Features
China High Speed Penicillin Bottle Adhesive Labeling Machine
The high-speed rotary labeling machine is suitable for vertical labeling of various cylindrical bottles, including penicillin bottles. This versatile machine excels at precisely applying labels to cylindrical surfaces, making it ideal for pharmaceutical packaging and other industries requiring accurate and efficient labeling solutions. Its robust design and advanced features ensure reliable performance and consistent results, meeting the demanding requirements of modern production environments.
Capable of labeling up to 600 bottles per minute for penicillin bottles with a diameter of up to Φ30mm, surpassing similar industry equipment.
Suitable for manual feeding or connection to other equipment.
Ensures precise positioning and smooth conveying.
Provides smooth and steady feeding with ample buffering space.
Ensures even bottle separation and smooth entry into the star wheel mechanism without bottle breakage.
