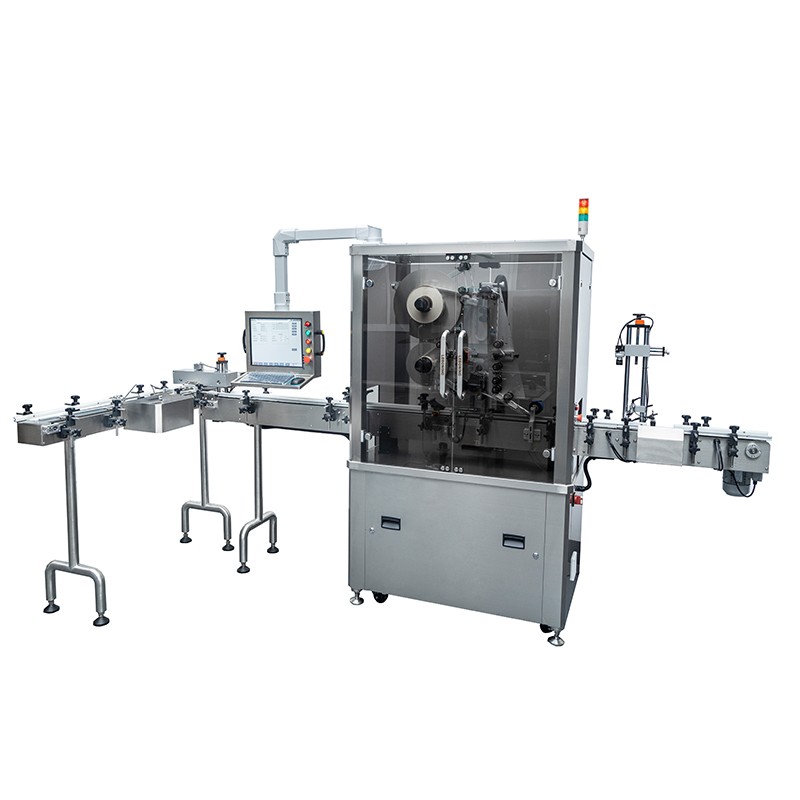

Automatic BFS Strips Adhesive Labeling Machine
Model: P-120
Specifically designed for top-surface labeling of multi-unit plastic bottles and ampoules in various specifications. BFS Strips Adhesive Labeling Machine Manufacturer
- Speed:0150plates/min
- Application Product Size:L:30-120mm,W:30-110mm,H:10-50mm
- Applicable Label Size:L:15-100mm,W:15-85mm
- Power Supply:3.5KW 220V 50Hz
- Technical Parameter
- Electrical Parameter
- Application Samples
| Machine Parameters | |
| Applicable product size | L:30-120mm,W:30-110mm,H:10-50mm |
| Labeling speed | 0-150 plates /min |
| Labeling accuracy | ±1mm ( except packaging material error ) |
| Product broken rate | ＜ 0.01 % |
| Labeling pass rate | > 99.9% |
| Power supply | 3.5KW, AC220V, 50/60HZ |
| Air consumption | 0.5Mpa,200L /min |
| Machine dimension | 3417*1765*2300 mm(including feeding mechanism) |
| Total weight (approximately) | Around 350Kg |
| Self-adhesive label parameters | |
| Applicable label material | Transparent labels, coated paper & PE, etc. |
| Applicable inner diameter of the label roll | φ76mm |
| Maximum label roll outer diameter | Φ400mm |
| Applicable label size | L:15-100mm,W:15-85mm |
| Label spacing | 2-4 mm |
| Top/bottom margins on liner | 2 mm |
| Grammage | >62 g/m2 |
| Thickness | >55 μm |
| Tensile strength | Machine Direction : 16kg/25mm ,Cross direction: 7kg/25mm |
| Breaking strength | Machine Direction : 25g/sheet ,Cross direction: 31g/sheet |
| Transparency | 52% |
| Electronic control system | ||
| PLC | S7-200 smart | SIEMENS (Germany) |
| Power Supplier | LRS-100-24 ( DC24V/100W) | MEAN WELL (Taiwan) |
| Air switch | ic65N-c16A | Schneider (France) |
| Air switch | ic65N-c10A | Schneider (France) |
| Relay | MY2N- GS | OMRON (Japan) |
| Chassis unit | ||
| Main material | Stainless steel SUS304 | |
| Chassis dimension | 1200(L)×850(W)×1840(H) mm | |
| Case structure material | Stainless steel square tube SUS304 | |
| Outer sealing material | Stainless steel SUS304 | |
| Illuminated button ( red ) | XB2BA42C | Schneider (France) |
| Emergency stop switch | XB2BS542C | Schneider (France) |
| Threshold switch | SN05-N | ROKO (Taiwan) |
| Conveyor mechanism | ||
| Main material | Stainless steel SUS304, aluminum A6061, plastic steel chain plate, POM | |
| Conveying motor and reducer | 5IK60GN-YFT 5GN15K | TWT (Taiwan) |
| Conveyor Motor Inverter | FC - 051 0.37 KW | Danfoss (Denmark) |
| Labeling host head | ||
| Main material | Stainless steel SUS304, Aluminum A6061, POM | |
| Label pulling servo motor | SGM7J-08AFC6S | YASKAWA (Japan) |
| Label pulling servo drive | SGD7S-5R5A00B202 | YASKAWA (Japan) |
| Label stock sensor | PRK3C.T3/2N | Leuze (Germany) |
| Label detection sensor | LRD-2100 | LION (USA) |
| HMI | ||
| Main material | Stainless steel SUS304, aluminum A6061 | |
| Touch screen | PFXGP4402W | Proface (Japan) |
| Illuminated button ( green ) | XB2BA31C | Schneider (France) |
| Illuminated button ( yellow ) | XB2BA51C | Schneider (France) |
| Illuminated button ( red ) | XB2BA42C | Schneider (France) |
| Emergency Button | XB2BS542C | Schneider (France) |
| Rotary Switches | ZB5AK1253C | Schneider (France) |
Conveying unique positioning module design

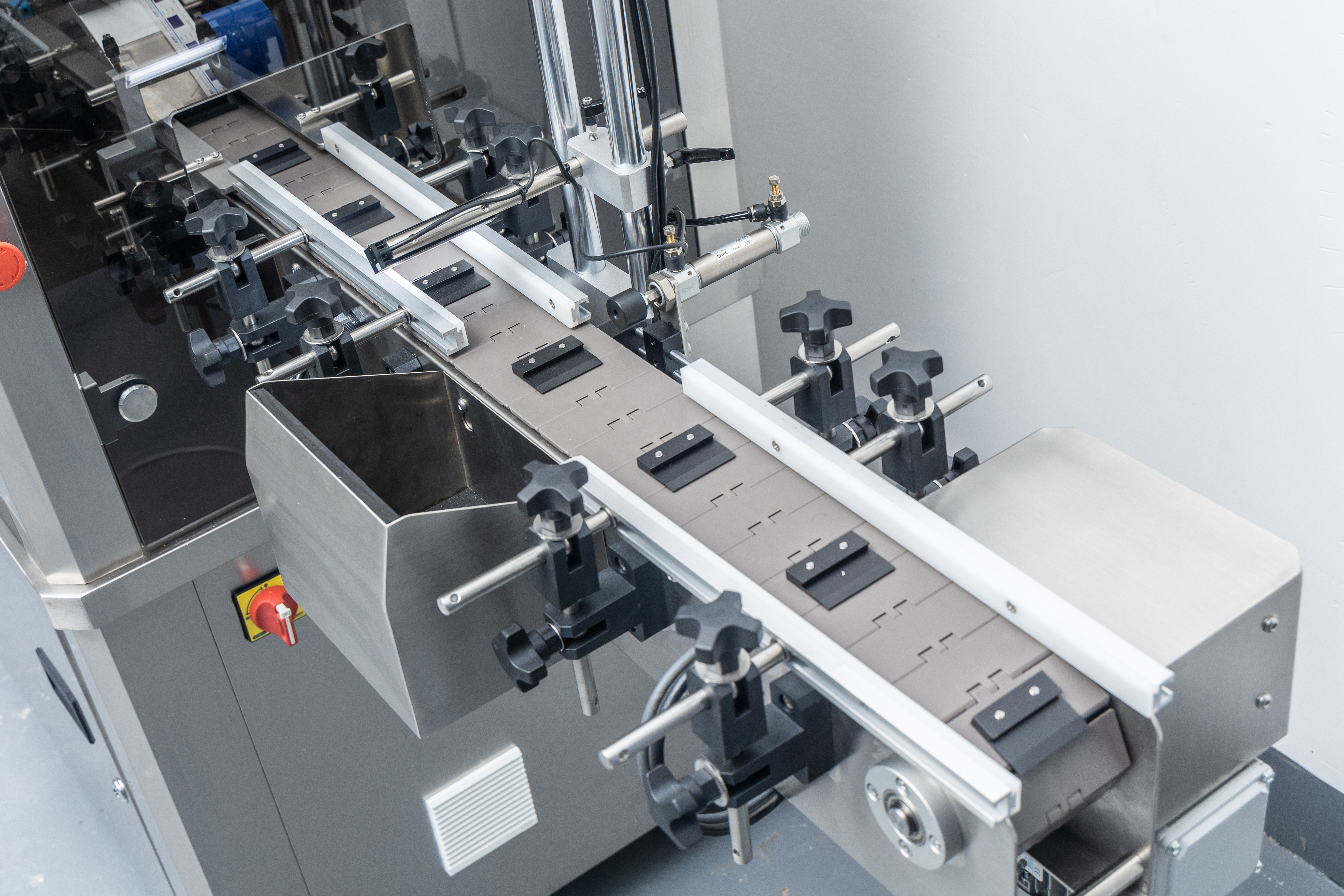

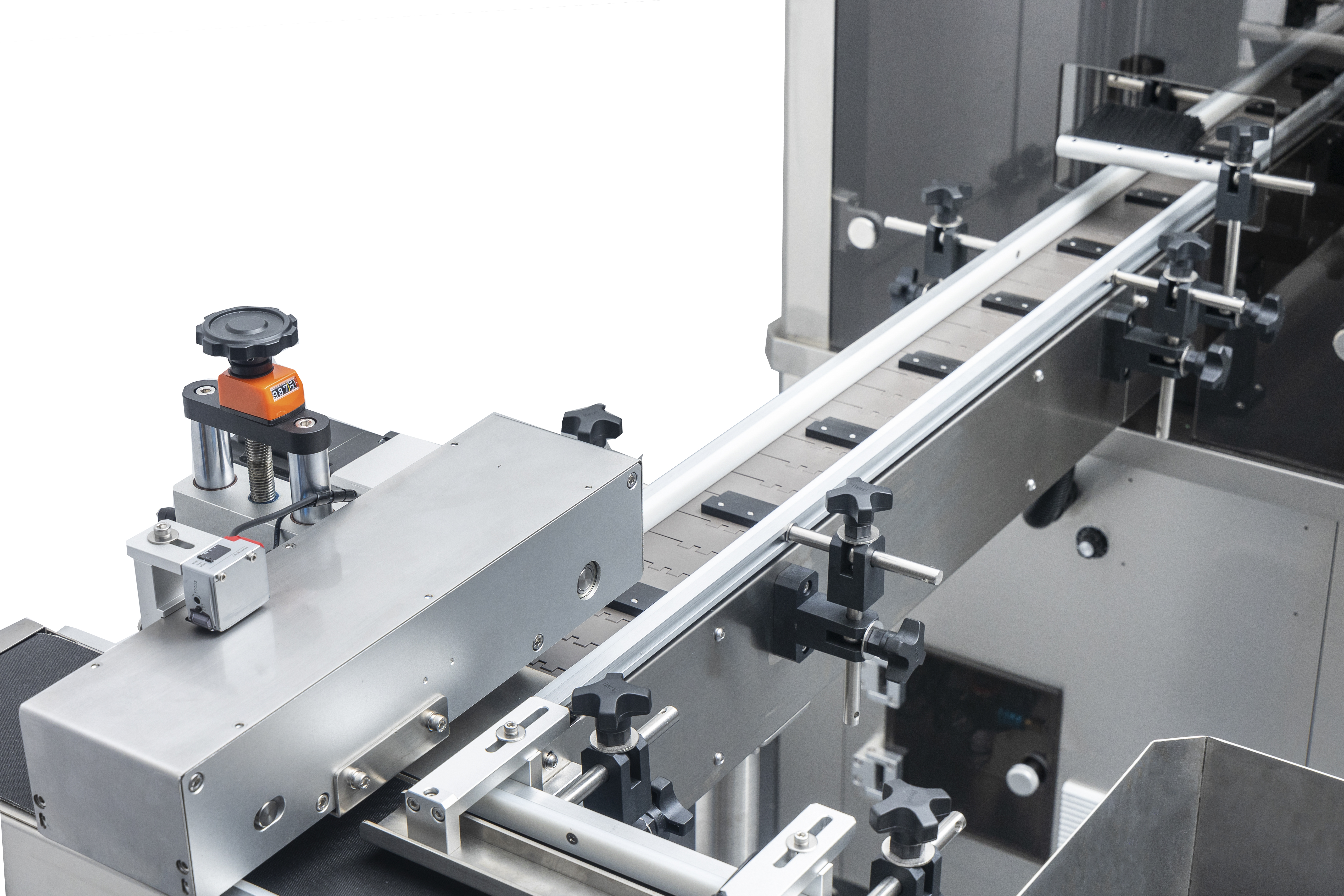

The positioning block designed according to the product size is installed on the conveyor chain plate to ensure the stability of the conveying, labeling and testing functions.
Labeling Host

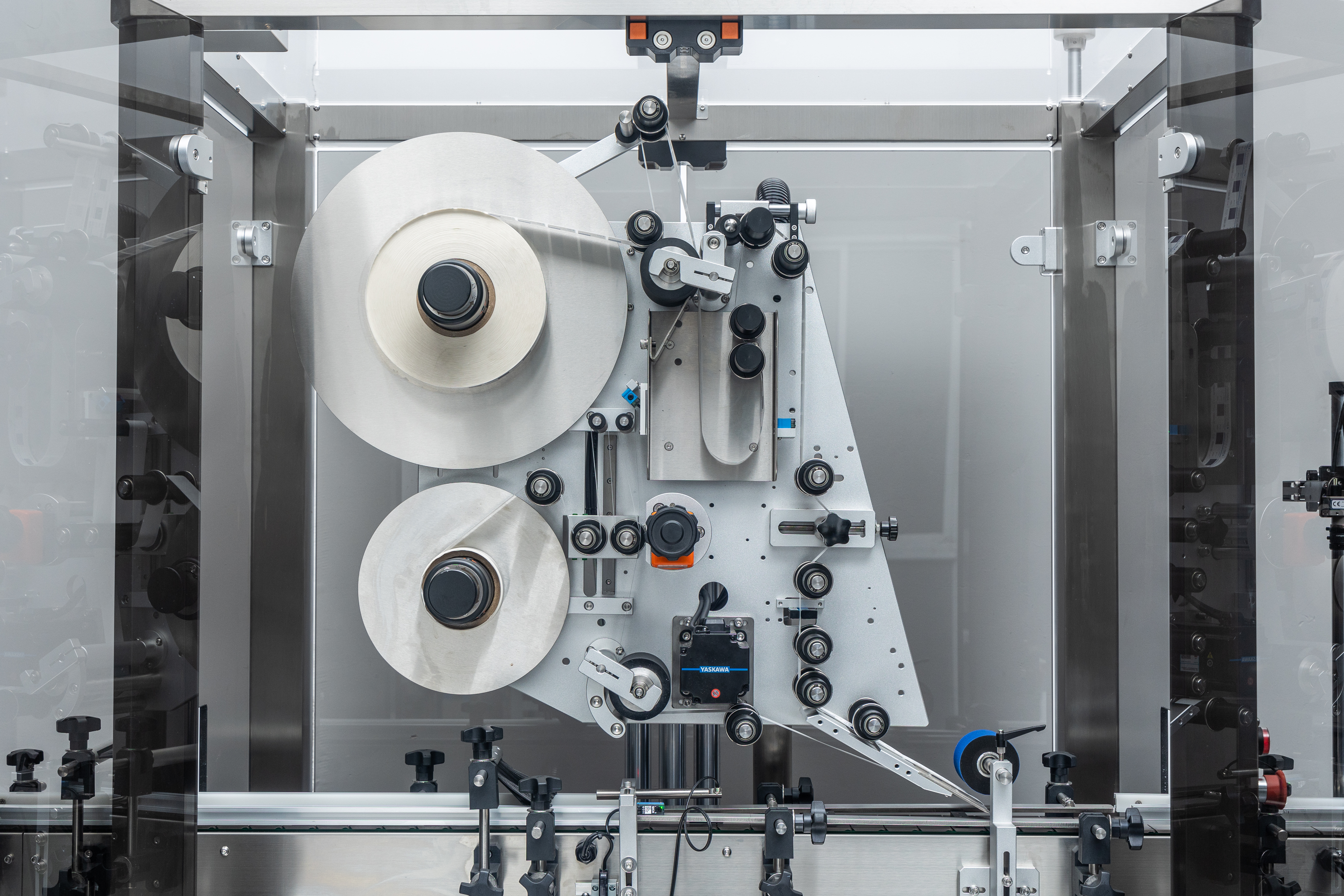

The labeling head adopts a three-section design, consisting of a label supply mechanism, a label pulling mechanism, and a backing paper recovery mechanism, each controlled by an independent motor to ensure fast and stable label transmission.
